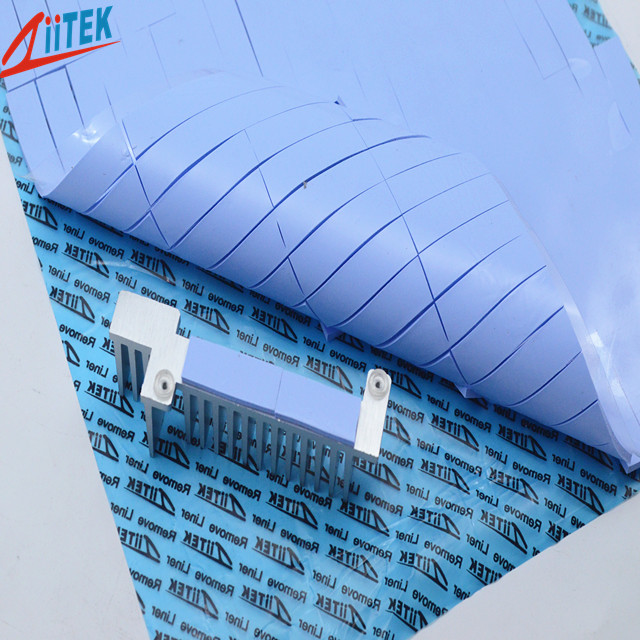

Electrically Isolating Popular Thermal Gap Pad UL Recognized For IT Infrastructure

  • 1
  • 2

Brand Name : Ziitek

Model Number : TIF100-05S Series

Certification : UL & RoHS

Place of Origin : China

MOQ : 1000pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 1000000 pcs/month

Delivery Time : 3-5 work days

Packaging Details : 24*23*12cm cantons

Features : Moldability for complex parts

Application : Micro heat pipe thermal solutions

Outgassing(TML) : 0.35%

name : silicone thermal pad TIF100-05S Series

Volume Resistivity : 1.0X10" Ohm-meter

Color : Blue

Contact Now

Electrically isolating popular thermal gap pad UL recognized for IT infrastructure

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIF100-05S Series

features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request

Features

Available in varies thicknesses
Broad range of hardnesses available
Moldability for complex parts
Outstanding thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized


Applications

Automotive electronics
Set top boxes
Audio and video components
IT infrastructure
GPS navigation and other portable devices
CD-Rom, DVD-Rom cooling
LED Power Supply
LED Controller

Typical Properties of TIF100-05SSeries
Color
Blue
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.3 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.020"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
45 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage

 >5500 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.35%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:


Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.

Electrically Isolating Popular Thermal Gap Pad UL Recognized For IT Infrastructure

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

TIF100-05S Datasheet-REV02.pdf
