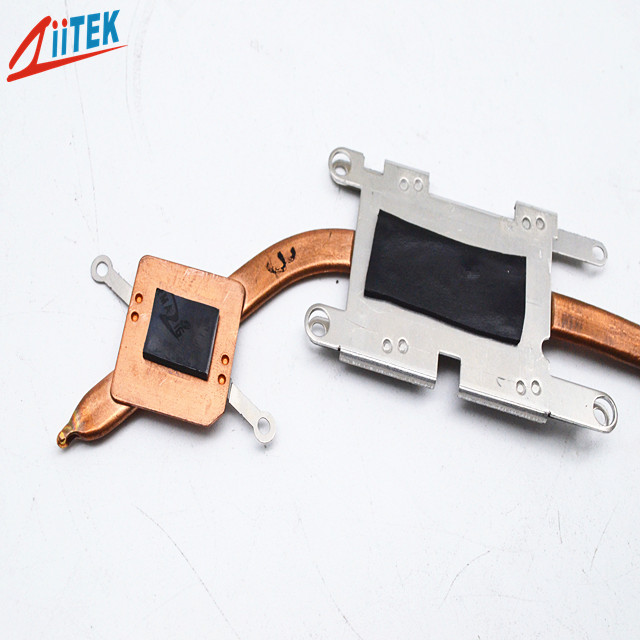

Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness TIF160-01U Series
Company Profile .
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIF160-01U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
TIF100-01U Series Datasheet-(E)-REV02.pdf
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
> routers
> Telecommunication hardware
| Typical Properties of TIF160-01U Series |
| Color | BLACK | Visual | Composite Thickness | Thermal Impedance @10psi
(℃-in²/W) |
| Construction &
Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.16 |
| 20mils / 0.508 mm | 0.20 |
| Specific Gravity | 2.2 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.31 |
| 40mils / 1.016 mm | 0.36 |
| Thickness range | 0.020"-0.200" | ASTM C351 | 50mils / 1.270 mm | 0.42 |
| 60mils / 1.524 mm | 0.48 |
| Hardness | 27 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
| 80mils / 2.032 mm | 0.63 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 | 90mils / 2.286 mm | 0.73 |
| 100mils / 2.540 mm | 0.81 |
| Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
| 120mils / 3.048 mm | 0.93 |
| Outgassing(TML) | 0.35% | ASTM E595 | 130mils / 3.302mm | 1.00 |
| 140mils /3.556 mm | 1.08 |
| Dielectric Constant | 3.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
| 160mils / 4.064 mm | 1.20 |
| Volume Resistivity | 1.0X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.24 |
| 180mils / 4.572 mm | 1.32 |
| Fire rating | 94 V0 | equivalent
UL | 190mils / 4.826 mm | 1.41 |
| 200mils / 5.080 mm | 1.52 |
| Thermal conductivity | 1.5W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
